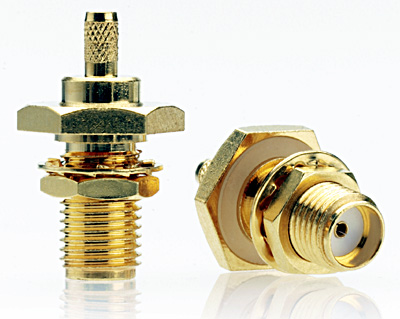

SMA Bulkhead Crimp Jack RG316 D

SMA Bulkhead Crimp Jack RG316 D

This product may also be known as:
RG316 SMA Female connector
SMA Female connector RG316
RG316 connector SMA
RG316 SMA connector
SMA connector for RG316

Part no: 106.222.054
1+ 10+ 50+ 100+ 250+
£2.28 £2.14 £1.97 £1.80 £1.63

All prices are listed in GBP and exclude VAT and carriage.
For larger quantities, please call: +44 (0)1420-479830.

Product Information

SMA B/H Crimp Female RG316D (Double Screened - Also known as RD316)

Rear Mounting - 11mm Flange with "O" Ring Gasket

Body: Brass / Gold Plated

Contact: BuCu / Gold Plated

Insulator: PTFE

Recommended Crimp Tool: 900-005 Ratchet Crimp Tool RG174

Product Data
Impedance: 50 Ohm
Unit of sale: Each
Supplied as: Single / Bulk
Weight: 5g
Suitable Cables

RG316 Double Screened (Also known as RD316)

Data Sheet

SMA Bulkhead Crimp Jack RG316 D

Competitor Cross-reference
Amphenol: 132285
Gigatronix: MA02-D316-C01
Radiall: R124313123
RS: 414-1329
