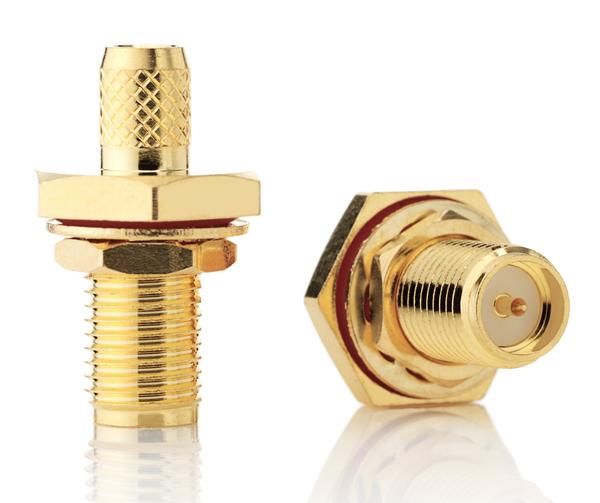

SMA Reverse Polarity Bulkhead Crimp Jack LMR195
This product may also be known as:
LMR195 SMA Reverse Polarity Female connector
SMA Reverse Polarity Female connector LMR195
LMR195 connector SMA Reverse Polarity
LMR195 SMA Reverse Polarity connector
SMA Reverse Polarity connector for LMR195
LMR195 SMA connector
Part no: 106.22D.014
| 1+ | 10+ | 50+ | 100+ | 250+ |
|---|---|---|---|---|
| £2.14 | £2.00 | £1.85 | £1.69 | £1.53 |
All prices are listed in GBP and exclude VAT and carriage.
For larger quantities, please call: +44 (0)1420-479830.
Product Information
SMA B/H RP Crimp Female LMR195
Rear Mounting - 11mm Flange with "O" Ring Gasket
Body: Brass / Gold Plated
Contact: Brass / Gold Plated
Insulator: PTFE
Recommended Crimp Tool: 900-010 Ratchet Crimp Tool RG58/59
Product Data
| Impedance: | 50 Ohm |
|---|---|
| Unit of sale: | Each |
| Supplied as: | Single / Bulk |
| Weight: | 6g |
Suitable Cables
AMC-58 - Belden 7806A - Belden 9907 - BPE195
HPF195 - KX 15 - LBC195 - LBC195 Extraflex
LMR195 - RG58 - URM43 - URM76 - WCX195
WBC195 Low Loss Coax Cable
Competitor Cross-reference
| Amphenol: | 132280RP |
|---|---|
| Farnell: | 1580126 |
| Gigatronix: | MA02-0058-C06-R |
| RS: | 546-2829 |
