N Type Crimp Jack LMR400
This product may also be known as:- LMR400 N Type Female connector
- N Type Female connector LMR400
- LMR400 connector N Type
- LMR400 N Type connector
- N Type connector for LMR400
- LMR400 N connector
| 1+ | 10+ | 50+ | 100+ | 250+ |
|---|---|---|---|---|
| £3.22 | £3.02 | £2.79 | £2.55 | £2.30 |
All prices are listed in GBP and exclude VAT and carriage.
For larger quantities, please call: +44 (0)1420-479830.
Product Information

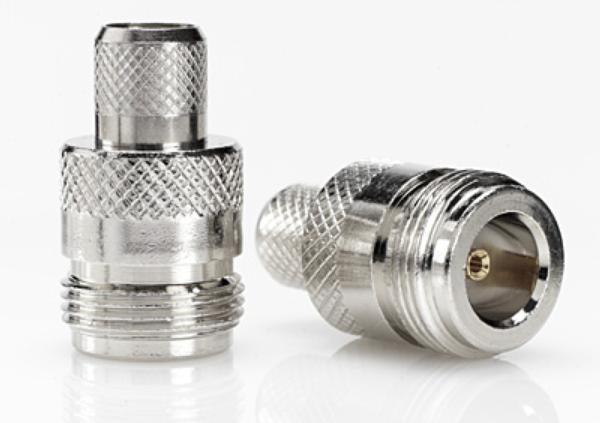

N Type Crimp Female LMR400 - Nickel Plated
Recommended Crimp Tool: 900-020
Please Note:
A Standard RG213 Crimp Tool will not Crimp this connector correctly. Although the Outer Ferrule remains
the same in dimension the Center Contact requires the use a 2.99mm A/F Hex.
If this Termination is going to be a "One time application" and you have a Standard RG213 tool then we
suggest you Solder the contact on and use the tool solely for the Ferrule.
Product Data
| Impedance: | 50 Ohm |
|---|---|
| Unit of sale: | Each |
| Supplied as: | Single / Bulk |
| Weight: | 28g |
Suitable Cables
Belden 7810A, 7810R, 7810WB, 9913, 9913F7, H1000
BPE400 - CA400 - CNT400 - HP400 - HP400R
LBC400 - LBC400 Extraflex - LMR400 - LMR400 Ultra Flex
RA519 - RFC400 - WBC400 Low Loss Coax Cable
Competitor Cross-reference
| Amphenol: | 172203 |
|---|---|
| Farnell: | 172203 |
| Gigatronix: | NT10-0519-C06 |
| RS: | 712-3071 |
