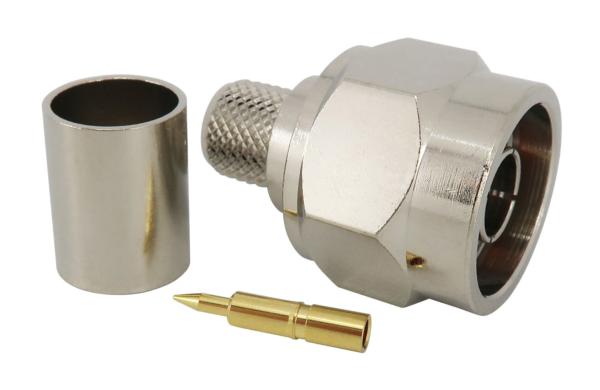

N Type Crimp Plug LMR400

N Type Crimp Plug LMR400

This product may also be known as:
LMR400 N Type Male connector
N Type Male connector LMR400
LMR400 connector N Type
LMR400 N Type connector
N Type connector for LMR400
LMR400 N connector

Part no: 036.111.303
1+ 10+ 50+ 100+ 250+
£2.98 £2.85 £2.72 £2.59 £2.46

All prices are listed in GBP and exclude VAT and carriage.
For larger quantities, please call: +44 (0)1420-479830.

Product Information

N Type Crimp Male

Machine Turned Body and Coupling Nut
Nickel Plated Body / Gold Plated Contact

Recommended Crimp Tool: 900.020 Ratchet Crimp Tool LMR400 / WBC 400

Please Note:
A Standard RG213 Crimp Tool will not Crimp this connector correctly. Although the Outer Ferrule remains
the same in dimension the Center Contact requires the use a 2.99mm A/F Hex.

If this Termination is going to be a "One time application" and you have a Standard RG213 tool then we
suggest you Solder the contact on and use the tool solely for the Ferrule.

Product Data
Impedance: 50 Ohm
Unit of sale: Each
Supplied as: Single / Bulk
Weight: 30g
Suitable Cables

Belden 7810A, 7810R, 7810WB, 9913, 9913F7, H1000
BPE400  -  CA400  -  CNT400  -  HP400  -  HP400R
LBC400  -  LBC400 Extraflex  -  LMR400  -  LMR400 Ultra Flex
RA519  -  RFC400  -  WBC400 Low Loss Coax Cable

Data Sheet

N Type Crimp Plug LMR400

Competitor Cross-reference
Amphenol: 172345
Farnell: 1462990
Gigatronix: NT15-0519-C06
Radiall: R161088180
